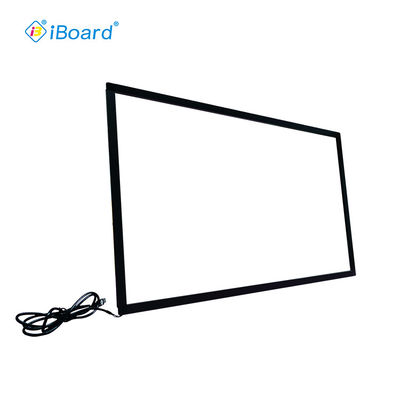

32" Infrared Touch Frame IR multi touch screens overlay kit for video wall kiosk 22"~300" Customized size

اطلاعات پایه
محل منبع: چین
نام تجاری: iBoard/ OEM
گواهی: CE FCC ROHS
شماره مدل: LE-32
مقدار حداقل تعداد سفارش: 10 قطعه
قیمت: USD50-USD3000 per pieces
جزئیات بسته بندی: کارتن های صادراتی SKD یا لوله های پلاستیکی یا کارتن های صادراتی برای صفحه های لمسی قاب لمسی IR
زمان تحویل: 10 روز کاری
شرایط پرداخت: L / C ، T / T ، Western Union
قابلیت ارائه: 20000 قطعه در هر ماه
نام محصول: قاب لمسی ، قاب لمسی IR ، پوشش صفحه نمایش لمسی مادون قرمز ، کیت لمسی IR ، پوشش قاب قاب لمسی IR وضوح: 32768 x 32768
تایپ کنید: فناوری لمسی مادون قرمز نوع رابط: USB ، سریال
نقاط تماس: 10 امتیاز ، قابل سفارشی سازی است ، 1 ~ 40 امتیاز اندازه: 22 "32" 42 "43" 49 "50" 55 "65" 70 "75" 80 ".
کاربرد: آموزش ، جلسه ، آموزش ، آموزش سیستم عامل: WIN ، Android ، MAC اختیاری است
رابط: USB2.0 / 3.0 ضمانتنامه: 2 سال
مواد: قاب آلیاژ آلومینیوم رنگ: رنگ سیاه یا سفارشی
ولتاژ تغذیه: DC 5V منبع تغذیه: usb شده

Infrared touch frame Multi touch screen frame overlay kit 21.5" 32" 49" 55" 65" 75" ...300"



Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device.  It support multi-touch, with smoothly writing experience.



Application

Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...



Available sizes

Size: 21.5”~300”
Customized sizes available
1~40 touch points available



SKD available



32" Infrared Touch Frame IR multi touch screens overlay kit for video wall kiosk 22"~300" Customized size 032" Infrared Touch Frame IR multi touch screens overlay kit for video wall kiosk 22"~300" Customized size 1



Specification



Name Specification
Touch Technology Infrared Touch Technology
Touch Points 2, 10, 20, 40 touch points available
Touch Input Method Finger, Pointer, Styplus pen or any other Opaque objects
Touch Interpolation 32768 x 32768
Respond Time 5-10 ms
Touch Accuracy ±2mm (over 90% Area)
Touch Durability Unlimited
Available Size for Touch Φ5mm
Supply Voltage DC+5V±10%
Operating Current <200mA for some sizes of some series; ≤500mA for some sizes of some series
Supporting System Windows/Mac OS/Linux/Android/Chrome OS





Packing



For multi-touch screen overlays with glass:

32" Infrared Touch Frame IR multi touch screens overlay kit for video wall kiosk 22"~300" Customized size 2





For multi-touch ir touch frame disassemble in SKD mode:

32" Infrared Touch Frame IR multi touch screens overlay kit for video wall kiosk 22"~300" Customized size 3
